TECHNICAL DATA

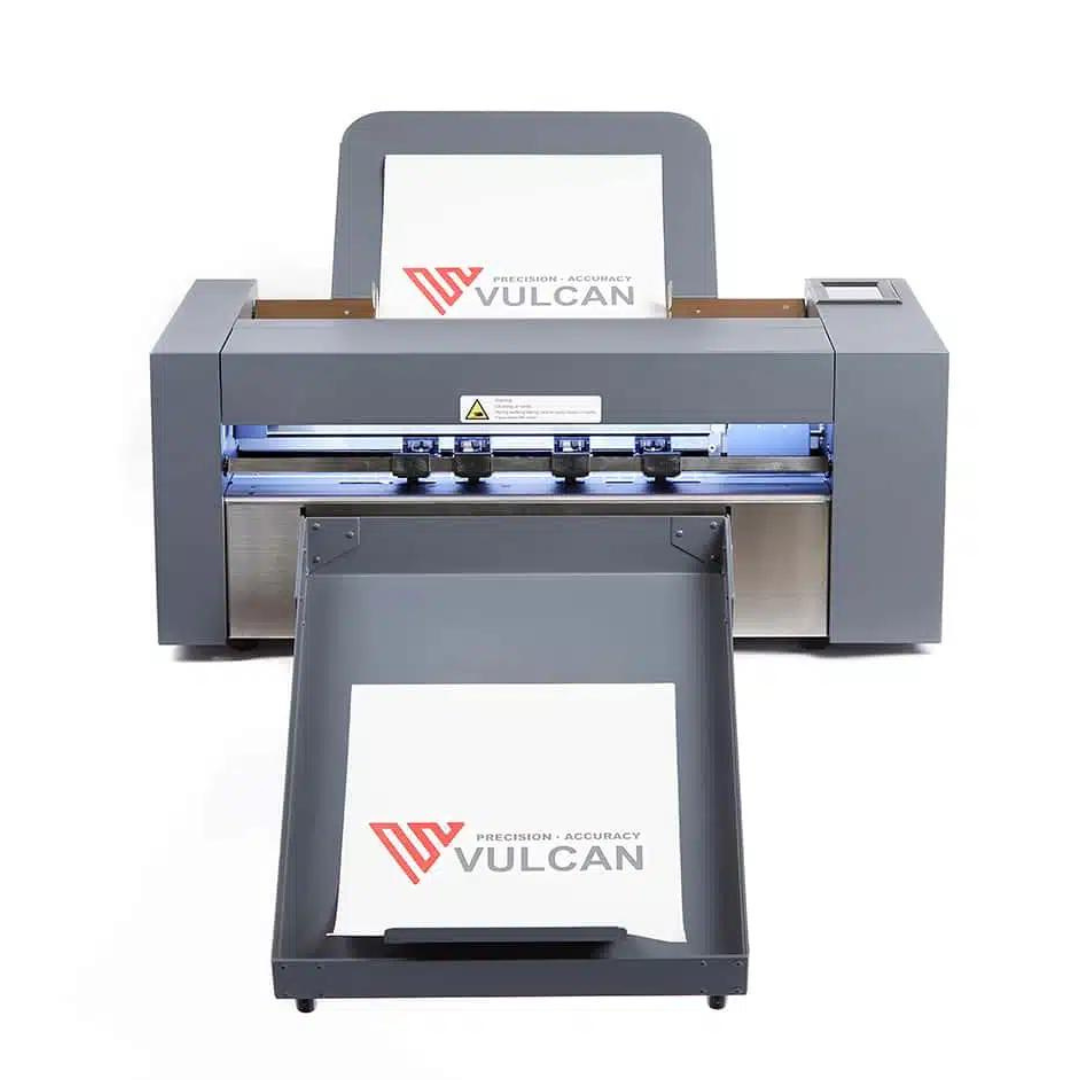

Machine type Auto feeding label cutter
Max. cutting speed 1200 mm/s
Downforce 10-400g adjustable in 1g steps
Min. cutting size 5 mm²
Feeding time 2 sec
Mechanical resolution 0.0124 mm
Interfaces USB 2.0 (full speed) / USB Stick /Ethernet
Command Set HP-GL
Control Backlit graphic, 4.3-inch touch LCD display
Power consumption 100 to 240 V AC, 50/60 HZ, 60 W
Operating environment Temperature: 10 to 35 degree C (35 to 95 degree F)
Humidity 35 – 75 % RH (not condencing)
Number of tools 1 tool
Tool types Drag knife
Dimensions Output tray: 406 x 462 x 186 mm Output tray +
Cutter + Media Carrier Tray: 1109 x 747 x 594 mm
Packing dimensions 870 x 550 x 580 mm / 0,28 m²
Weight 33 kg / 36 kg
Compatible operating system Windows and Mac
