VULCAN FC 700 VC

Features

Άμεση παραλαβή

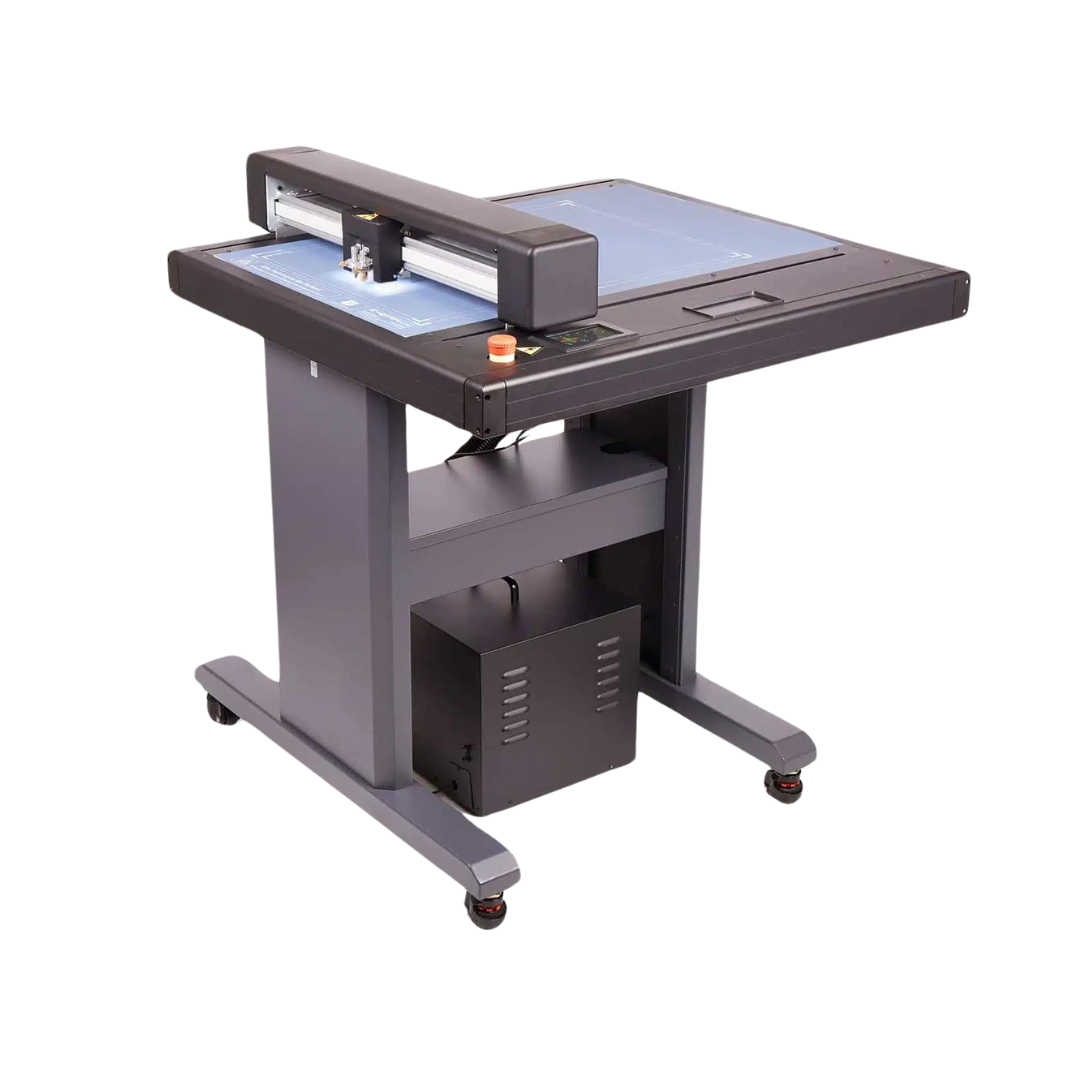

START A FIRE OF CREATIVITY WITH FC-500VC/700VC The Vulcan FC-700VC flatbed cutting plotters combine maximum precision, intuitive operation and modern design with first-class quality standards – equipment that is second to none.

◉ HIGH RESOLUTION CCD CAMERA ◉ INTUITIVE TOUCHSCREEN ◉ PRECISE CUT ◉ SIMULTANEOUS CUTTING & CREASING ◉ USB INTERFACE ◉ QR CODE SYSTEM ◉ SOPHISTICATED COMMUNICATION

Επικοινωνήστε για τιμή.

Εκδήλωση ενδιαφέροντος.

Περιγραφή

Machine type	Digital servo system, fl at bed
Media hold down method	Vacuum suction
Max. cutting speed	700 mm/s
Downforce	Tool1: Max.5.88N(600 gf) Tool 2: Max. 5.88 N (600 gf)
Max. work area	480 x 660 mm / 775 x 1060 mm
Mountable media (Y-axis)	640mm / 940mm
Min. cutting size	5 mm²
Mechanical resolution	0.005 mm (5µm)
Programmable resolution	HP-GL: 0.025 mm
Reproducibility	0,1 mm
Interfaces	USB 2.0 (full speed) / USB-Stick /Ethernet
Memory	32 MB
Command Set	HP-GL
Number of tools	2 tools
Tool types	Ball-bearing drag knife, calibration pen, creasing tool
Control	Backlit graphic, 4.3-inch touch LCD display
Power consumption	Max. 150W (machine), Max.550W (vacuum pump)
Operating environment	Temperature: 10 to 35 degree C (35 to 95 degree F)
Humidity	35 – 75 % RH (not condensing)
Dimensions	981(Y) x 977(X) x 1047(H)mm / 1420(Y) x 1212(X) x 1050(H)mm
Packing dimensions	115 x 110 x 61 cm (machine) 44.5 x 43 x 37 cm (vacuum pump) / 168 x 153 x 61 cm (machine) 78 x 67 x 72 cm (vacuum pump)
Weight	105 kg / 77 kg (machine), 23 / 20 kg (vacuum)
Compatible operating system	Windows and Mac
