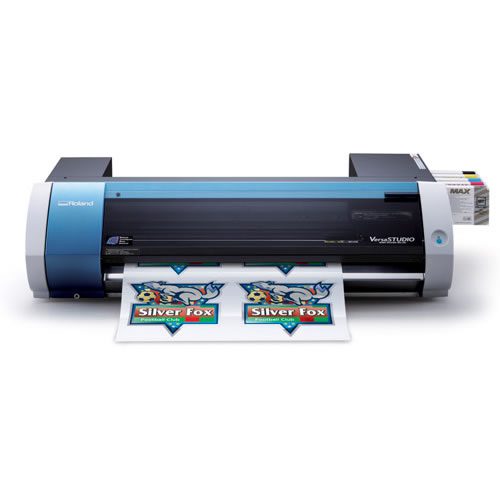

| Model | BN-20 | BN-20A | |
| Printing technology | Piezoelectric inkjet | ||
| Media | Width *1 | 150 to 515 mm (5.9 to 20.3 in.) | |
| Thickness | Max. 1.0 mm (39 mil) with liner, for printing Max. 0.4 mm (16 mil) with liner and 0.22 mm (9 mil) without liner, for cutting |
||
| Roll weight | Max. 6 kg (13.2 lb) | ||
| Roll outer diameter | Max. 150 mm (5.9 in.) | ||
| Core diameter | 76.2 mm (3 in.) or 50.8 mm (2 in.) | ||
| Printing/cutting width *2 | Max. 480 mm (18.9 in.) | ||
| Ink | Type and capacity | ECO-SOL MAX/ MAX2/ MAX 3, 220 cc cartridges | ECO-SOL MAX3, 220 cc cartridges |
| Colours | 5 colours (Cyan, Magenta, Yellow, Black, Metallic Silver or White) | 4 colours (Cyan, Magenta, Yellow, Black) | |
| Printing resolution (dots per inch) | Max. 1440 dpi | ||
| Cutting blade | Type | Roland CAMM-1 series compatible | |
| Blade Offset | 0.25 mm (9 mil) | ||
| Cutting speed | 10 to 150 mm/s | ||
| Blade force | 30 to 300 gf | ||
| Software resolution (when cutting) | 0.025 mm/step | ||
| Distance accuracy (when printing) *3,*4 | Error of less than ±0.3% of distance travelled, or ±0.3 mm, whichever is greater | ||
| Distance accuracy (when cutting) *3,*5 | Error of less than ±0.4% of distance travelled, or ±0.3 mm, whichever is greater | ||
| Repetition accuracy (When cutting) *3,*6 | ±0.1 mm or less | ||
| Alignment accuracy for printing and cutting *3,*7 | ±0.5 mm or less | ||
| Alignment accuracy for printing and cutting when reloading media *3,*8 | Error of less than ±0.5% of distance travelled, or ±3 mm, whichever is greater | ||
| Print heater *9 | Temperature: 35°C (95°F) | ||
| Connectivity | USB (compliant with Universal Serial Bus Specification Revision 2.0) | ||
| Power-saving function | Automatic sleep feature | ||
| Power requirements | AC 100 to 240 V ±10 %, 1.5 A, 50 / 60 HZ | ||
| Power consumption | During operation | Approx. 90 W | |
| Sleep mode | Approx. 5.5 W | ||
| Acoustic noise level | During operation | 62 dB (A) or less | |
| During standby | 42 dB (A) or less | ||
| Dimensions/Weight | 1009 (W) x 582 (D) x 293 (H) mm (39.7 x 23 x 11.5 in.) / 36 kg (79.4 lbs) | ||
| Environment | Power on *10 | Temperature: 20 to 32°C (68 to 90°F), humidity: 35 to 80%RH (no condensation) | |
| Power off | Temperature: 5 to 40°C (41 to 104°F), humidity: 20 to 80%RH (no condensation) | ||
| Included Items | Roland VersaWorks 6 RIP Software, power cable, USB cable, blade, blade holder, User’s Manual, etc. | ||
| VersaWorks 6 System Requirements | |
| Operating System | Windows® 10 (32/64 bit), Windows® 8.1 (32/64 bit), Windows® 7 Ultimate/Professional (32/64 bit) |
| Hard-disk file system | NTFS Format |
| CPU | Intel Core™ 2 Duo, 2.0 GHz or faster recommended |
| RAM | 2GB or more recommended |
| Video card and monitor | A resolution of 1280 x 1024 or more recommended |
| Free hard disk space | 40 GB or more recommended |
| Optical drive | DVD-ROM |
| Ethernet Connection | 100 mbps |
| Other | Internet connection recommended |
