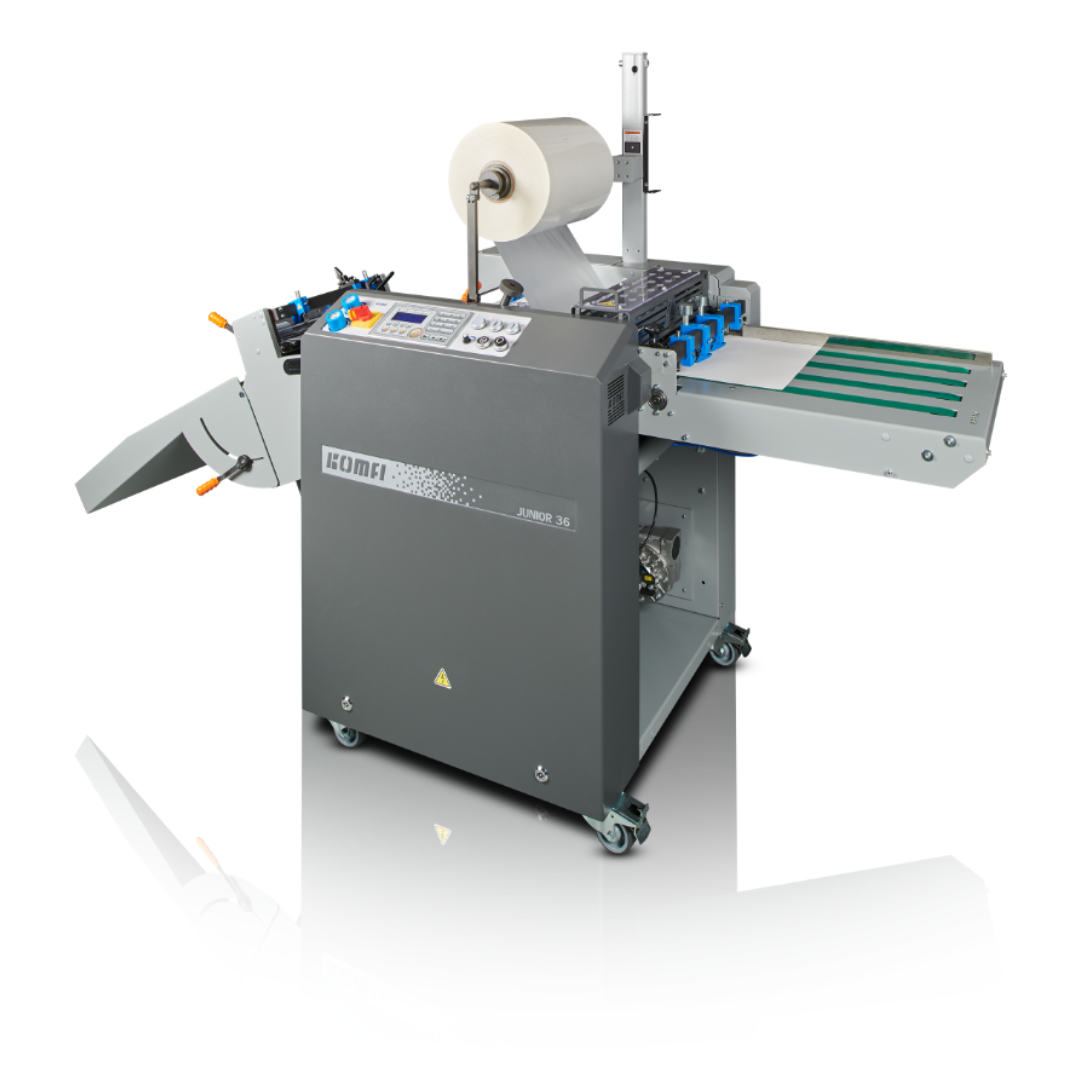

KOMFIE JUNIOR 36

Άμεση παραλαβή

Machine Characteristics

  • Compact & easy to operate laminator for orders up to B3 sheet format
  • Professional quality lamination in cost-effective package
  • Easy manual feeding with accurate automatically controlled sheet overlap
  • Various options to increase productivity and efficiency
  • Ability to process any common laminating film for offset or digital output
  • Automatic sheet separation using built-in perforator and unique Komfi design tilting separating mechanism
Category:

People Also Viewed

Περιγραφή
Parameter Value
Speed 15 m/min = 2000 SRA3 sheets/h
Max sheet size 36 × 70 cm
Paper weight 115-350 g/m²
Machine dimensions
212 × 77 × 150 cm

MORE PARAMETERS

Min. sheet dimensions 20 × 20 cm
Thickness of laminating film 24-50 μm (acc. to film type)
Kind of laminating film OPP, PET, Nylon
Time of laminating cylinder warm up Approx 3.5 min
Sheet overlap accuracy ± 1 mm
Air connection Min. 6 bar
Consumption of compressed air 8 l/min
Max. consumption of compressed air 8 l/min
Max. pressing force 12.8 kN = 1.3 ton-force
Max. linear nip pressure 35.5 N/mm
Max. consumption of electricity 2.1 kW
Power supply (EU version) 2.6 kVA
Power supply (US version) 3.1 kVA
Machine weight 240 kg
Recommended machine capacity 100 000 sheets/month
