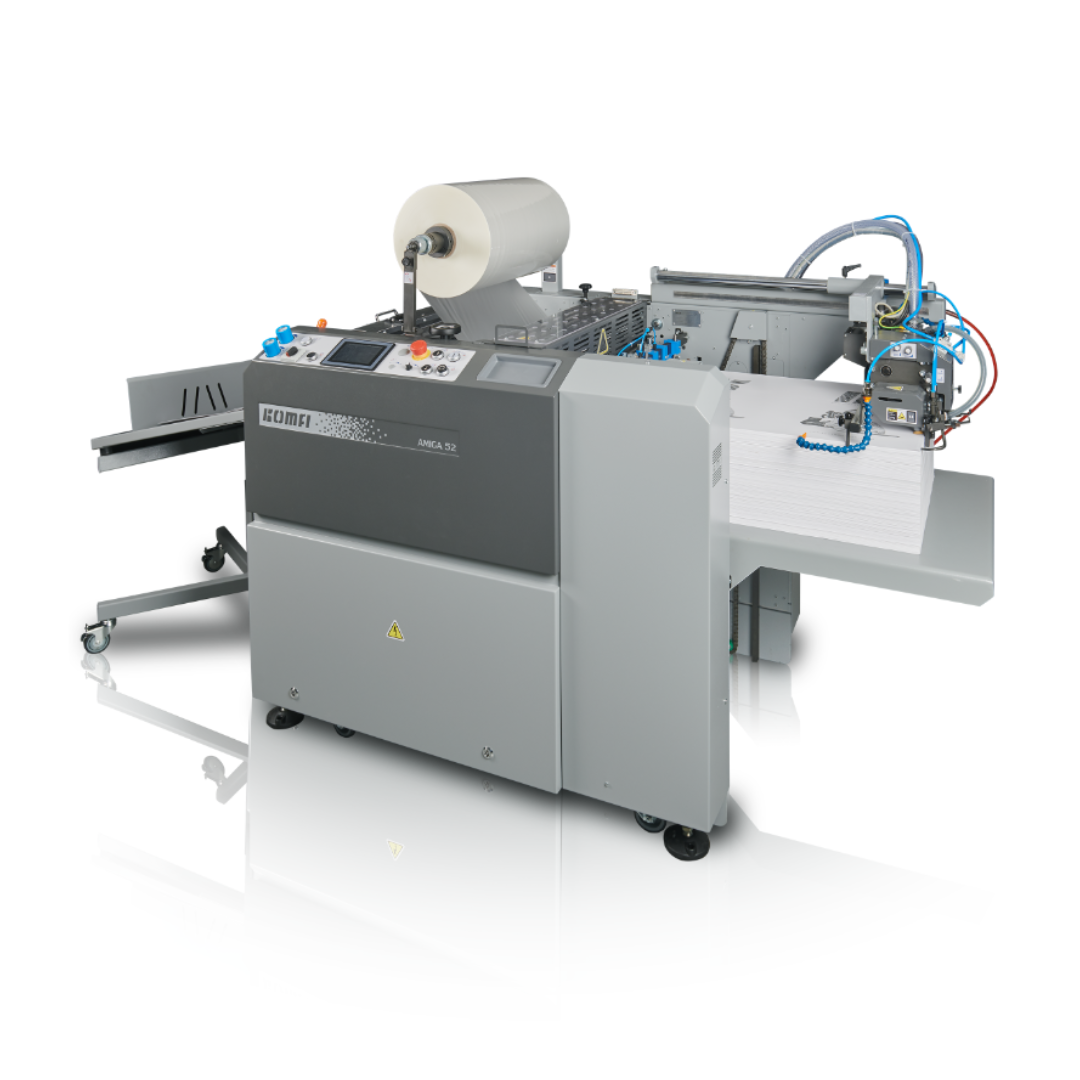

KOMFIE AMIGA 52

Features

Άμεση παραλαβή

Professional quality lamination for variety of small jobs up to B2 format
Modular design to provide a professional laminating solution for any situation
Electronically controlled gate for accurate and stable sheet overlap at any production speed
Graphical touch screen for comfortable multi-language operation
Fast setup due to user presets to recall machine settings quickly
Continuous checking of the whole process (feeding, temperature, air pressure, sheet separation, etc.)

People Also Viewed

Parameter	Feeding head
Max. speed of lamination	25 m/min
Max. output of the feed. head	8000 sheets/h
Min. sheet dimensions	20 × 20 cm
Max. sheet dimensions	56 × 80 cm
Paper weight Paper thickness	115-600 g/m² Max 0.7 mm (with overlap >0 Max 1.4 mm (with overlap <0)
Max. paper pile	50 cm (max. 300 kg)
Thickness of laminating film	24-50 µm
Kind of laminating film	OPP, PET, Nylon
Time of laminating roll warm up	Approx. 4 min
Sheet overlap accuracy	0.8 mm
Machine dimensions incl. table (lxwxh)	245 × 99 × 160 cm
Machine dimensions incl. stacker	356 × 117 × 157 cm
Air supply	Min. 6 bar
Consumption of compressed air	60 l/min
Max. consumption of compressed air	60 l/min
Max. pressing force	20.5 kN
Max. linear nip pressure	39.4 N/mm
Max. consumption of electricity	5.5 kW
Power supply	6 kVA
Machine weight	650 kg
Recommended machine capacity	100 000 sheets/month
