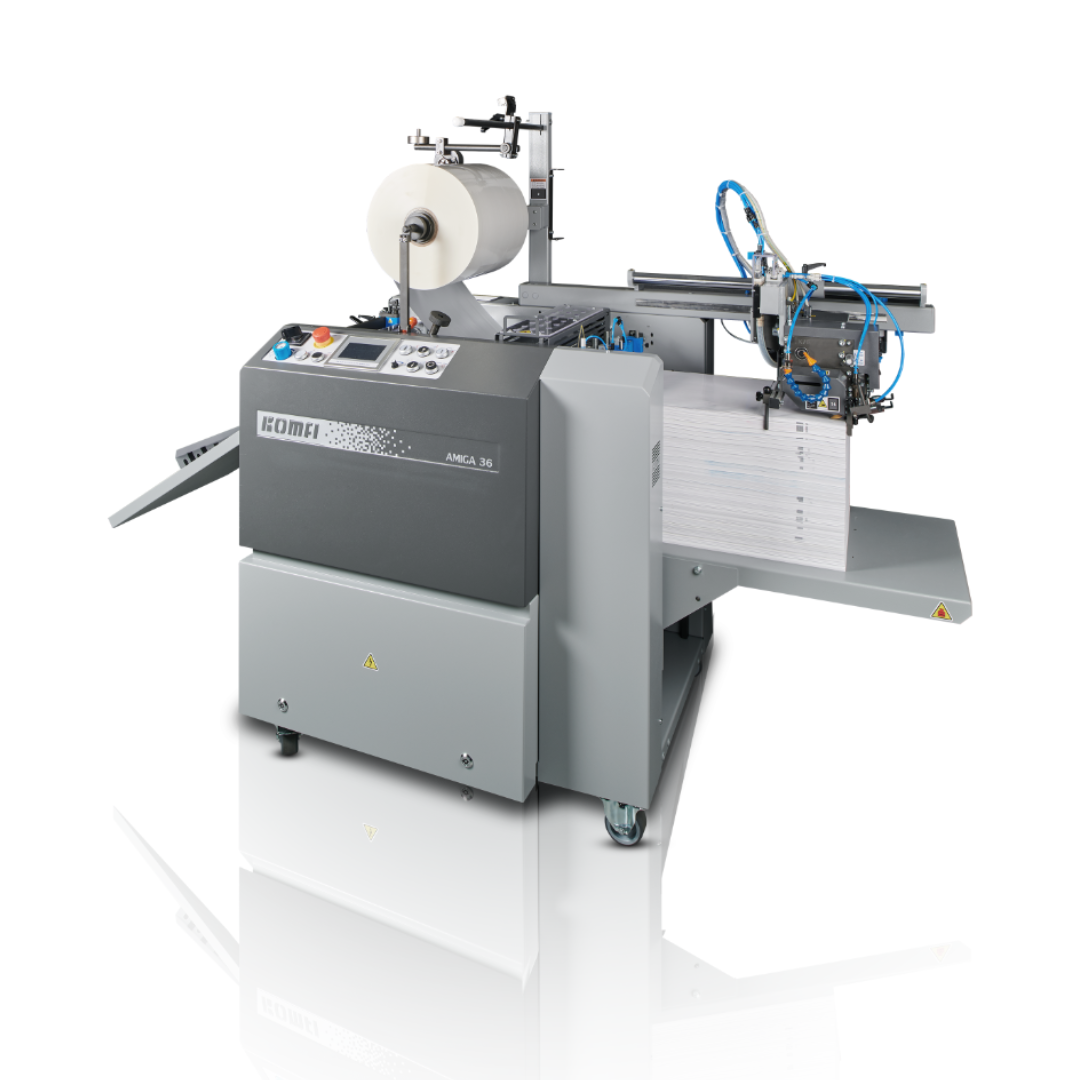

KOMFIE AMIGA 36

Features

Άμεση παραλαβή

Professional quality lamination for variety of small jobs up to b3 format
Unique Software features to minimize waste sheets
Processor controlled feeding head for stable sheet feeding (option)
Controlled gate for accurate and stable sheet overlap at any production speed
Graphical touch screen for comfortable multi-language operation
Continuous automatic checking of the whole lamination process (feeding, temperature, air pressure, sheet separation, etc.) to ensure 100% quality result

People Also Viewed

Parameter	Feeding head
Max. speed of lamination	20 m/min
Max. output of the feed. head	4500 sheets/h
Min. sheet dimensions	20 × 20 cm
Max. sheet dimensions	36 × 70 cm
Paper weight Paper thickness	115-350 g/m² max 0.5 mm (with overlap > 0) max 1 mm (with overlap < 0)
Max. paper pile	40 cm (max. 100 kg)
Thickness of laminating film	24-45 μm
Kind of laminating film	OPP, PET, Nylon
Time of laminating roll warm up	Approx. 3.5 min
Sheet overlap accuracy	± 1 mm
Machine dimensions incl. table (LxWxH)	220 × 79 × 150 cm
Air supply	Min. 7 bar
Consumption of compressed air	97 l/min
Max. consumption of compressed air	150 l/min
Max. pressing force	12.8 kN = 1.3 ton-force

Max. consumption of electricity	5.8 kW
Power supply
Machine weight	360 kg
Recommended machine capacity	100 000 sheets/month
